Dust Collector

Dust Collector

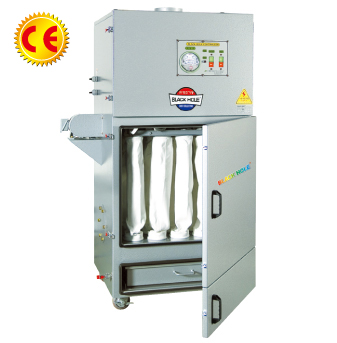

DS SERIES DUST COLLECTOR

Content

Detail Movie

USE

  • - Works for cutting fabric
  • - Mixture
  • - Stone grinding
  • - Electric & Electronic
  • - panel
  • - molding
  • - Cutting for casting
  • - Buffing
  • - Metal cutting
  • - Baggage
  • - Crushing
  • - Powder supply etc.

INSTALLATION

- Click on the picture for a larger picture. + More

FEATURES

MANOMETER Inform dust accumulation condition,time for dust dropping and filter change
FILTER CLEANING

Very effective micro dust dropping which attached air pulse type cartridge by the process of pulse timer operation makes compressed air  spraying automatically through blow tube then drawing air surrounded



Type of Dust shaking

- Auto : By press button once, quiet and powerful vibration automatically makes quick and effective dust dropping.
No troubles from long operating time
- Manual : Moving shaking handle, dust drop. Very economic and no troubles


※ By Circular bag filter, easy attachment & removal
Control Panel Adopting centralized and built in type with concentrated power S/W and differential pressure gauge makes easy recognition for operating and  protect damage, decrease trouble on moving.
TURBO BLOWER - Possible zero vibration,less noise,more suction rate,minimized air resistance by superb precision press molds and electronic balancing works
Painting

- Exclusive Design and color

- Very strong to heat and endurance

SPECIFICATION

​
Model Output
(kw)		 Airflow
(cmm)		 Pressure
(mmaq)		 Filter Size(㎜) Dust
Drawer
(ℓ)		Weight
(㎏)
Size
(w×l)		 Qty Area
(㎡)		 a b c ød e f øg h
DS-50 0.4 7 230 Ø100×450 9 3.03 600 630 1,320 98 300 303 123 90 9 120
DS-101 0.75 12 Ø100×600 16 7.2 700 630 1,520 123 300 274 148 90 16 170
DS-202 1.5 25 Ø100×600 25 11.25 800 730 1,570 148 350 334 198 90 23 23
DS-303 2.2 40 Ø100×600 30 16.2 800 780 1,570 198 375 356 248 90 65 260
DS-505 3.7 60 Ø100×800 30 25.2 850 780 1,920 248 375 428 298 90 65 390
DS-707 5.5 80 Ø100×1000 42 42 1,000 980 2,130 298 475 460 348 90 130 500
DS-1010 7.5 100 Ø100×1000 56 56 1,200 1,130 2,280 348 550 512 398 100 130 590
DS-1500 5.5×2 150 Ø100×1000 72 72 1,400 1,230 2,330 398 600 585 448 100 130 740
DS-2000 7.5×2 200 Ø100×1000 90 90 1,600 1,430 2,330 448 700 615 498 100 150 980

STANDARD DIMENSION




INSTALLATION

+ More
