DX SERIES Dust Collector

Content

- Click on the picture for a larger picture. + More

MANOMETER	Easy find filter change time with simple check of accumulated dust in filter.

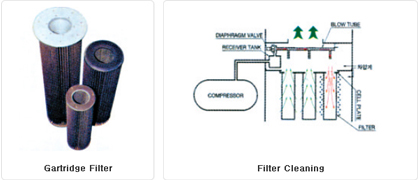

FILTER	Possible collect for any micro dust by enlarging filtering area with cartridge type of structure. Easy change with united structure.
Continuos Operating	Possible 24 Hr operating by automatic dust dropping from M/C.
Control Panel	Adopting centralized and built in type with concentrated power S/W and differential pressure gauge makes easy recognition for operating and protect damage, decrease trouble on moving.
TURBO BLOWER	Possible zero vibration,less noise,more suction rate,minimized air resistance by superb precision press molds and electronic balancing works.
FILTER CLEANING	Very effective micro dust dropping which attached air pulse type cartridge by the process of pulse timer operation makes compressed air spraying automatically through blow tube then drawing air surrounde.
Painting	- Exclusive Design and color - Very strong to heat and endurance

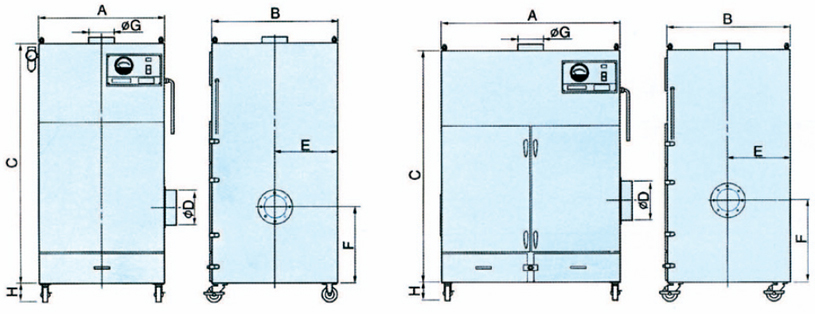

Model	Output (kw)	Airflow (cmm)	Pressure (mmaq)	Filter			Size (㎜)								Dust Drawer (ℓ)	Weight (㎏)
Model	Output (kw)	Airflow (cmm)	Pressure (mmaq)	Size (w×l)	Qty	Area (㎡)	a	b	c	ød	e	f	øg	h	Dust Drawer (ℓ)	Weight (㎏)
DX-101	0.75	12	230	200×500l	3	8.1	600	630	1,420	123	300	410	148	90	16	165
DX-202	1.5	25			4	10.8	650	680	1,520	148	325	440	198	90	45	220
DX-303	2.2	40			7	18.9	720	750	1,570	198	360	540	248	90	65	250
DX-404	3.7	50			8	21.6	750	780	1,620	248	375	540	298	90	80	300
DX-505	3.7	60			9	24.3	750	780	1,620	248	375	540	298	90	80	380
DX-707	5.5	80		200×1000l	9	48.6	850	880	2,230	298	425	650	348	90	100	490
DX-1010	7.5	100			12	64.8	1,220	1,030	2,440	348	500	700	398	100	130	580
DX-1500	5.5×2	150			16	86.4	1,500	1,050	2,440	398	510	700	448	100	130	720
DX-2000	7.5×2	200			20	108	1,700	1,070	2,440	448	520	725	498	100	170	940
DX-3000	11×2	300			24	129.6	2,000	1,070	2,626	548	520	800	598	100	170	1,450
