MXC SERIES Oil Mount Pipe
Content
USE
- - Suitable for small devices like Small CNC lathes
- - milling
- - tapping machine
- - foaming machine
- - electric discharge machine
- - machine tools
- - washing machine etc.
FEATURES
Same cautions all products
| MANOMETER | Easy filter change by front door type adoption. |
|---|---|
| TURBO BLOWER |
- Possible zero vibration, less noise, more suction rate, minimized air resistance by superb precision press molds and electronic balancing work - It is easy to dismantle and assemble, so it is easy to maintain and repair. |
| FILTER CLEANING | By the operation of the pulse timer, a dust speed attached to the Air Pulse Type(Valve and Reservoir are Built) cartridge box, the compressed air is automatically as air is drawn from the surrounding area by injection through the Blow Tube, even fine dust can be eliminated. |
| Painting | - Exclusive Design and color |
| Advantage | - Oil recovery possible at 99.9% for Centrifugal separator - Effective for capturing water-soluble and large volume of oil mist - Increased speed through the emission of live mist, Available 24 hours - Install Air Mist Isolation System. - Attached air mist separation system. |
| Precautions on installation |  |
SPECIFICATION
| Model | Output (kw) |
Airflow (cmm) |
Pressure (mmaq) |
Number of revolutions (RPM) |
Noise (dB) |
Intake and outlet |
Size (㎜) |
Weight (㎏) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| øa | b | øc | ød | e | f | øg | h | i | j | ||||||||
| MXC-40 | 0.2 | 4 | 150 | 3,500 | 60±2 | 100 | 350 | 695 | 280 | 98 | 395 | 260 | 125 | 445 | 200 | 270 | 24 |
| MXC-50 | 0.4 | 7 | 150 | 3,500 | 65±2 | 100 | 530 | 775 | 320 | 98 | 440 | 270 | 115 | 330 | 230 | 327 | 33 |
| MXC-101 | 0.75 | 12 | 150 | 3,500 | 68±2 | 125 | 645 | 860 | 385 | 123 | 572 | 324 | 140 | 416 | 280 | 415 | 42 |
| MXC-202 | 1.5 | 25 | 150 | 3,500 | 70±2 | 150 | 698 | 968 | 427 | 148 | 558 | 420 | 165 | 441 | 320 | 441 | 50 |
| MXC-303 | 2.2 | 40 | 150 | 3,500 | 70±2 | 200 | 762 | 1,162 | 445 | 798 | 630 | 470 | 217 | 464 | 370 | 475 | 80 |
※ This specification shall be changeable without notice in order to improve capability.

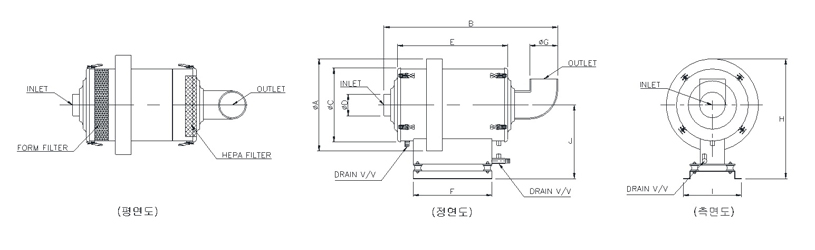

STANDARD DIMENSION
