MX SERIES

Content

Detail Movie

USE

- Applying different body painting
- machining center
- automatic lathe
- milling works
- Foaming M/C
- Tapping
- electric discharging M/C.

Field on Spraying mist of Oil and Water

Lubrication(Food and machinery factory), rust preventing, cleansing, coating(parts factory),

cooling(cold milling and rolling factory).

Field on increasing mist of oil and water

Steel factory(bearing), Oil factory, steel pipe, general M/C, etc.

Field on need to keeping constant temperature

Tooling and measuring instrument room,buffing, chemical and textile factory, factory shelf in facility of air conditioned.

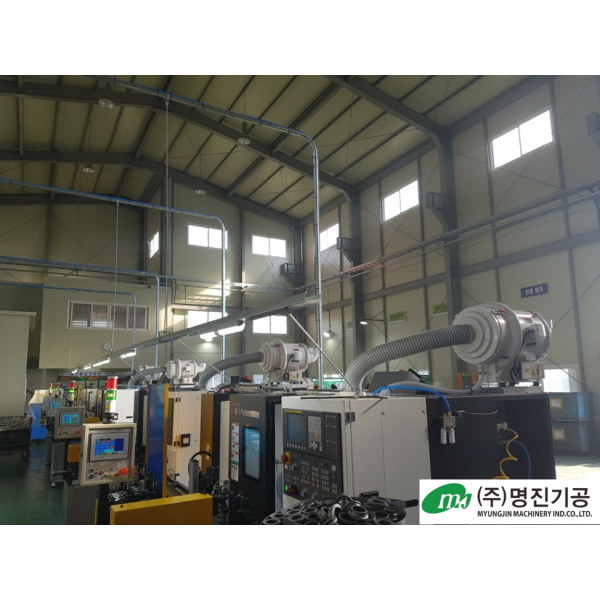

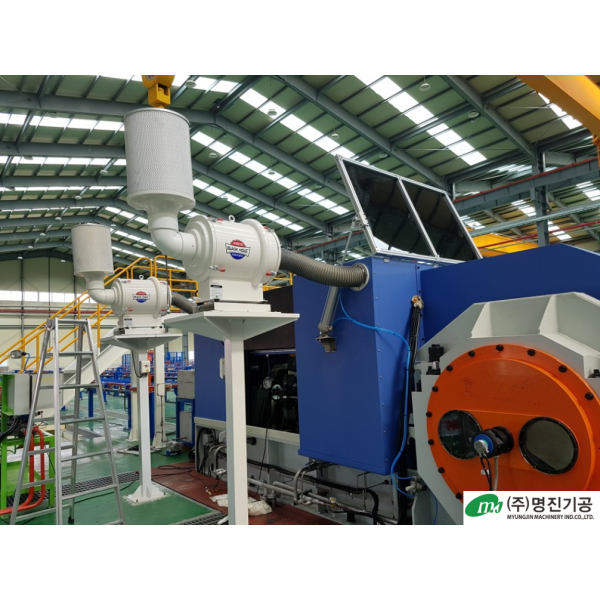

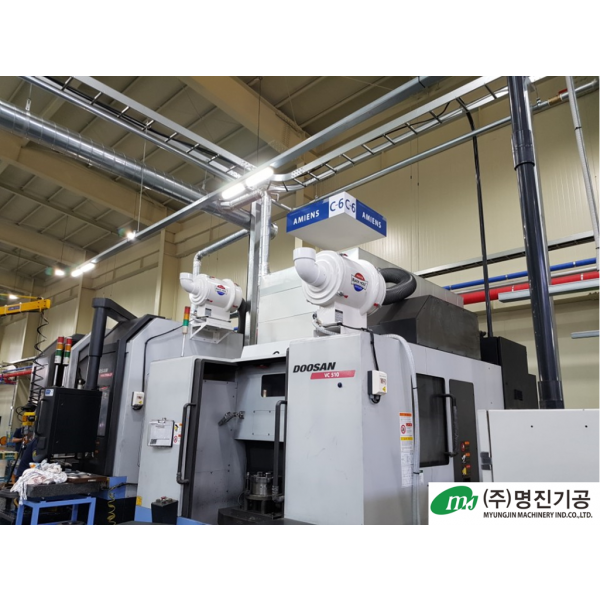

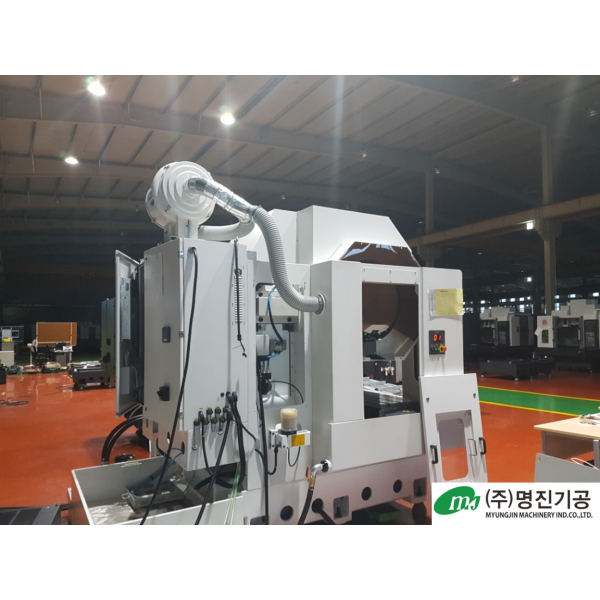

INSTALLATION

- Click on the picture for a larger picture. + More

FEATURES

- Possible collecting from many places mist by centralized system and mass capacity.
- Most effective and minimal size.Easy attach on narrow space and machine.Useful for mist from various places.
- Possible cooling and heating energy saving by indoor air purification and re-circulation.
- Strong collection by very closed and limited area to mist produced.
- Available cost saving by no troubles and easy maintenance.Optional for odor eliminating function.
- With triple layers filter type,from mist to fume collect fully.
- Possible collect above than 3micron and 99.997% by HEPA filte

TURBO BLOWER

Possible zero vibration,less noise,more suction rate, minimized air resistance by superb precision press molds and electronic balancing works.

Painting

- Exclusive Design and color
- Very strong to heat and endurance

Advantage

- Maximize durability and quality with advanced tools.
- Highly heat resistant and durable material

CONTROL PANEL

Adopting centralized and built in type with concentrated power S/W and differential pressure gauge makes easy recognition for operating and protect damage, decrease trouble on moving

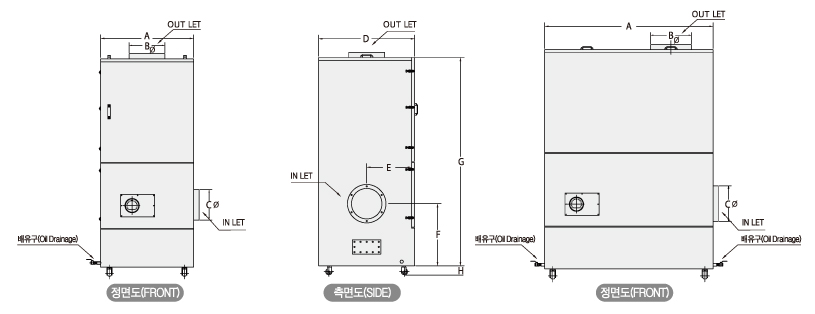

SPECIFICATION

Model	Output (kw)	Airflow (cmm)	Pressure (mmaq)	Filter			Size (mm)								Weight (㎏)
Model	Output (kw)	Airflow (cmm)	Pressure (mmaq)	1st PRE FILTER	2st PRE FILETR	3st PRE FILTER	a	øb	øc	d	e	f	g	h	Weight (㎏)
MX-101	0.75	12	230	610x610x50	610x610x400x8P	610x610x150	730	148	123	750	360	170	1,500	250	120
MX-202	1.5	25		610x610x50	610x610x400x10P	610x610x150	730	198	148	750	360	180	1,550	250	165
MX-303	2.2	40		610x610x50	610x610x500x12P	610x610x292	730	248	198	750	360	190	1,890	250	280
MX-505	3.7	60		760x610x50	760x610x500x12P	760x610x292	770	298	248	800	385	240	1,980	250	305
MX-707	5.5	80		800x610x50	800x610x500x18P	800x610x292	850	348	298	880	425	240	2,100	250	680
MX-1010	7.5	100		610x610x50x2	610x160x500x12Px2	610x610x292x2	1,550	398	348	930	450	290	2,220	250	710
MX-1500	5.5x2	150		760x610x50x2	760x610x50x2	760x610x292x2	1,550	448	398	930	450	290	2,200	250	760
MX-2000	7	200		800x610x50x2	800x610x50x2	800x610x292x2	1,600	498	448	930	450	340	2,330	250	900
