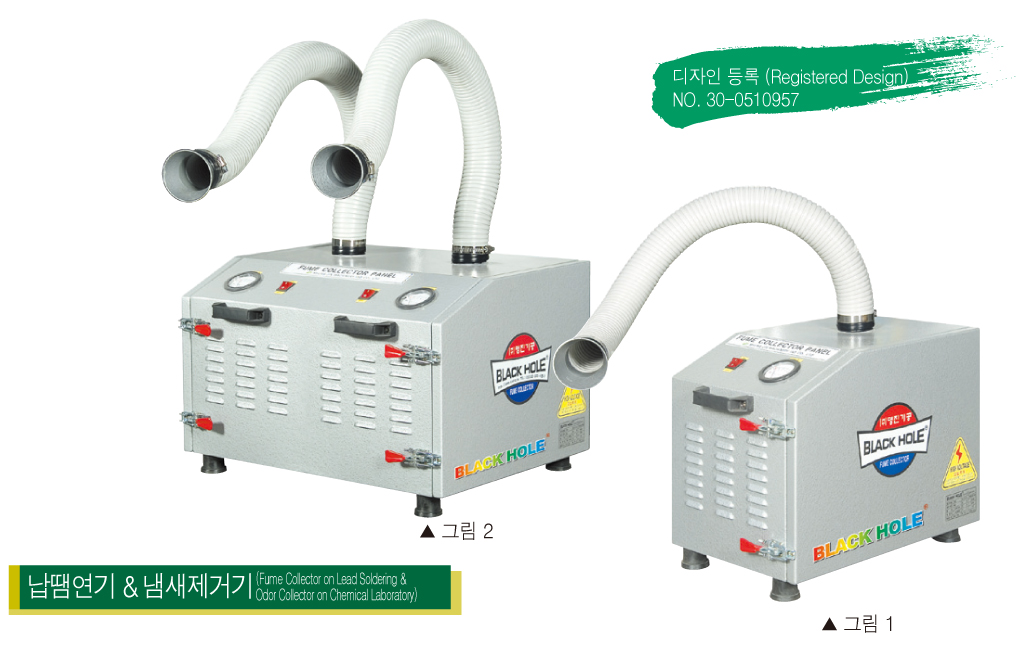

F SERIES Soldering Smoke, Odor Remover, Dust Collector
Content
USE
- Elimination of lead smoke and fume in soldering electric and
electronic parts.
- Elimination of reek of chemicals in school and lab.
- Elimination of dust in grinding and carving jewelry and gemstone.
- Elimination of dust from mixer of pharmacy.
FEATURES
- Equipment on the table is available due to effective shape compact size.
- Silent operating from perfect anti noise.
- Perfect absorption of particles of fume owing to combination of activated carbon fiber filter and granular activated carbon fiber.
- Extension of expected life of activated carbon filter in adoption of triple filter, perfectly collecting 99.997% of micro particles over 0.3 micron.
SPECIFICATION
| Model | Output (kW) |
Airflow (CMM) |
Pressure (mmAq) |
Noise (dB) |
Filter | Size (mm) |
Weight (㎏) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st PRE FILTER |
2st PRE FILTER |
3st PRE FILTER |
a | b | c | ød | ||||||
| F-100 | 200 | 35±2 | 40 | 35±2 | 305x305x20 | 305x305x75 | - | 470 | 320 | 360 | 53 | 10 |
| F-300 | 220 | 48±2 | 48±2 | 470 | 320 | 360 | 53 | 12 | ||||
| F-500 | 200x2 | 55±2 | 55±2 | 470 | 640 | 360 | 53 | 20 | ||||
※ This specification shall be changeable without notice in order to improve capability.

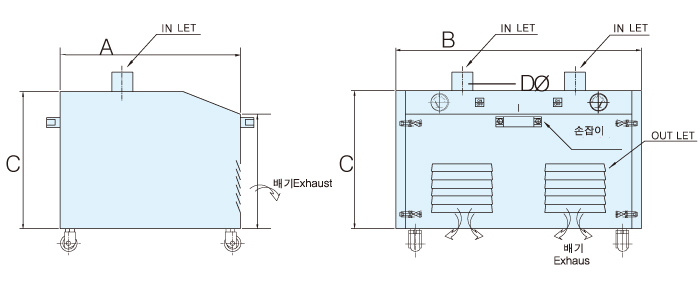

STANDARD DIMENSION
