Carbon Collector

Carbon Collecto

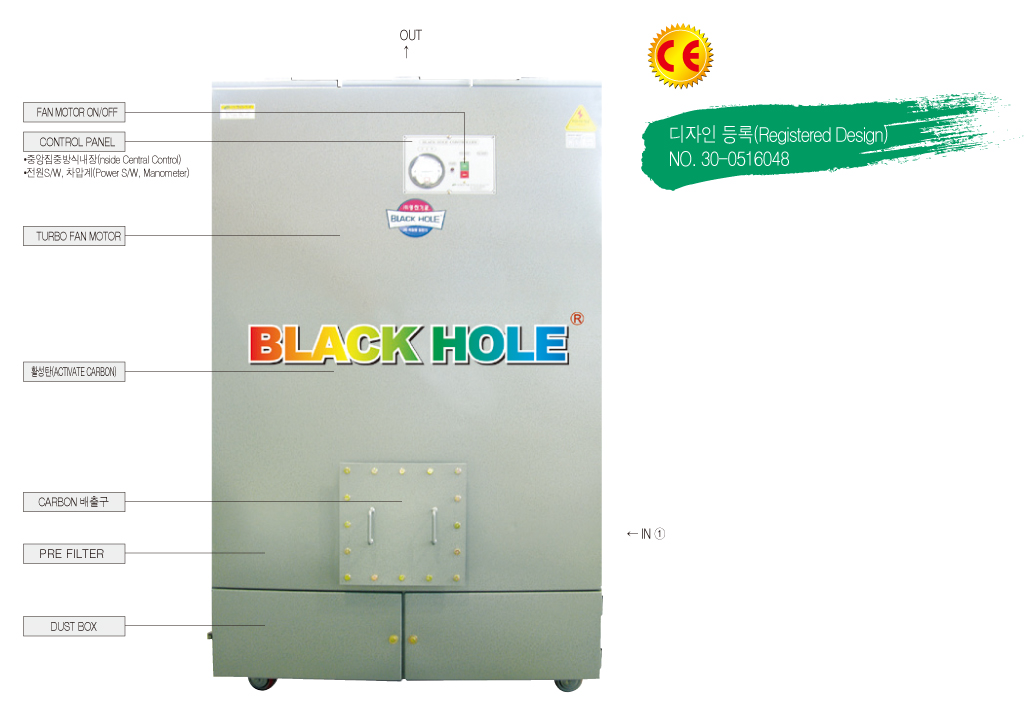

HB SERIES Adsorption type(Activated carbon) Dust Collector

Content

Detail Movie

USE

- For high density chemical odor and gas

- Specially good for painting

- cleansing

- drying

- heating.

INSTALLATION

- Click on the picture for a larger picture. + More

FEATURES

Using mass active carbon fiber,air purification

- Steam heated Charcoal with temperature 600-900, be heat treated by chemical and physically then re-processed.
This charcoal changed into active carbon fiber which has 1200Sqm of sectioned surface per 1g. It can eliminate odor and purify air.

- The surface is the most large compare to any other types.Also the density of micro pore is very wide.
Powerful suction ability of turbo fan equipped Show strong suction action

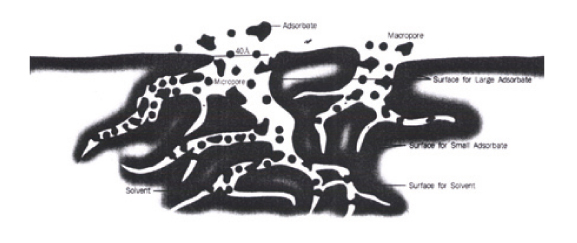

Active Carbon Structure
CAUTION

- Must call us before using on high temperature, volatility,lammable substance.
- When needs more capacity,refer to CAC series.

SPECIFICATION

Model Output
(kW)		 Airflow
(CMM)		 Pressure
(mmAq)		 Filter Size
(mm)		 Weight
(㎏)
Activated
carbon
amount
(㎏)		 Filtration area
(㎡)		 PRE FILTER a b c Ød e f Øg h
HB-101 0.75 12 230 138 0.7 350x600x50T(2ea) 1,100 730 1,500 123 350 400 148 90 320
HB-202 1.5 25 254 1.39 350x670x50T(2ea) 1,100 800 1,800 148 396 370 198 90 380
HB-303 2.2 40 413 2.3 450x870x50T(2ea) 1,300 1,000 2,050 198 483 390 248 90 450
HB-404 3.7 50 450 2.5 550x970x50T(2ea) 1,500 1,000 2,200 223 500 400 273 90 500
HB-505 3.7 60 585 3.34 550x970x50T(2ea) 1,500 1,150 2,400 248 555 420 298 90 500
HB-707 5.5 80 785 4.44 600x970x50T(2ea) 1,600 1,400 2,550 298 689 455 348 90 650
HB-1010 7.5 100 994 6.4 650x990x50T(2ea) 1,700 1,500 2,600 348 750 470 398 100 780
HB-1500 5.5x2 150 1,386 8.4 1320x730x50T(2ea) 2,000 1,900 2,950 398 950 700 448 100 890
HB-2000 7.5x2 200 1,851 11.22   2,300 2,180 3,000 448 1,100 745 498 100 990



※ This specification shall be changeable without notice in order to improve capability.

STANDARD DIMENSION




INSTALLATION

+ More
